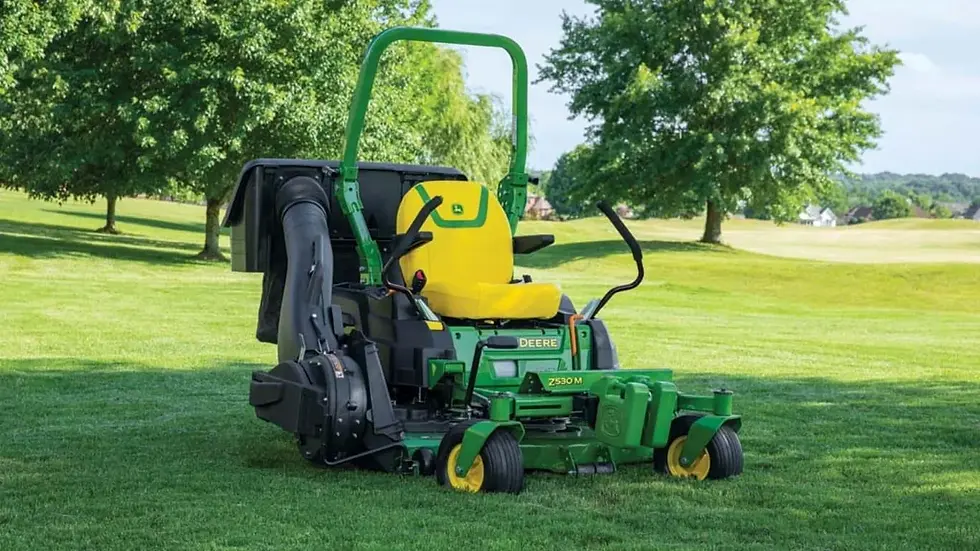

John Deere Z530M ZTrak™ Mower, 48-in. Deck
Description
Mid-Tier Z500 Series. 24 HP V-Twin. Premium Seating.
The John Deere Z530M is the mid-tier model of the Z500 Series, positioned between the entry-level Z515E and the premium Z530R. It brings upgraded comfort – including a more comfortable seat with armrests – while maintaining the same proven frame, mower deck, and drivetrain as its siblings.
Power comes from a 24 HP (17.9 kW) V-Twin engine with 44.3 cu in. (726cc) displacement featuring easy-clean cooling ports integrated into the engine shroud. Dual Tuff Torq® TZT7-M unitized hydrostatic transmissions deliver excellent hillside stability.
The 48-in. High-Capacity mower deck is built from heavy 9-gauge steel with 1-in. cold-forged heat-treated spindles. Standard front rollers and double-captured wheels help reduce scalping in rolling terrain.
Specifications
• Engine: V-Twin, 726cc, 24 HP (17.9 kW)
• Transmission: Dual Tuff Torq® TZT7-M unitized hydrostatic
• Axles: 1 in. (2.5 cm) beefed-up
• Cutting Deck: 48-in. High-Capacity, 9-gauge (0.15 in.) steel
• Spindles: 1-in. cold-forged heat-treated, ball-bearing supported
• Seat: High-back with armrests
• ROPS: Easy-fold Roll-Over Protective Structure
Features
• Upgraded seat and motion-control levers over Z515E
• Standard front rollers and double-captured wheels
• Two large engine cleanout ports for easy debris removal
• Maintenance-free sealed transmissions – no hose connections
• Optional rear hitch for towing
• Compatible with optional MulchControl™ kit and Power Flow™ rear bagger
• Easy-fold ROPS for storage
• Compatible with John Deere MowerPlus app
• 4-year / 500-hour single-source bumper-to-bumper warranty (transferable)
